ESG400-4T
The all-rounder in compact size, with great efficiency
The ESG400-4T is extremely versatile and can therefore be used in a wide range of industries. The machine base consists of an integrated cast and steel construction. The structure consists of hardened and precisely manufactured aluminum parts to ensure high accuracy. The work piece is fixed horizontally and the cutting process takes place from top to bottom.
Available with the following options:
- with additional automated 360 degree adjustable turntable.
- with additional automated 360 degree adjustable turntable and 0-15 degree automatically adjustable tilt table.
For cutting silicon, optical glass, sapphire, ceramics, magnetic materials, metals, crystals, graphite, meteorites, corrugated cardboard and other hard and brittle materials.
What you get
- Excellent cutting quality
- Low acquisition costs
- Simple maintenance
- Short lead time
- 12 months quality warranty on machines
- Free trial cutting services
- Worldwide support from experienced and competent staff
Characteristics

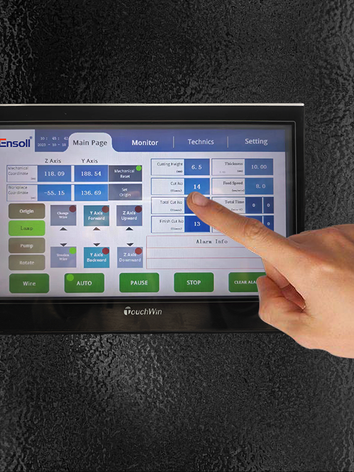

- Simple and intuitive operation via touchscreen
- Entry of several consecutive cuts with different recipe parameters
- Different cutting speeds in one cut (e.g. for composite material)
- 2-axis control (vertical feed, horizontal loading table)
- 4 pulleys with 3 wire grooves each for longer use and shorter down time
- Observation of the process through 2 front doors
- Display of the process status via LED light
- Simple wire tension system
- Simple and quick wire installation / wire change within a few minutes
- Short down time thanks to simple operation
- Tank for coolant on rollers
Technical parameters
Connection voltage
220 VAC
Total power
1.5 kW
Machine size*
1090 × 1090 × 2070 mm (L×W×H)
(largest machine version)
Total weight
560 kg
Loading table size
400 × 400 mm (L×W)
Loading table load capacity
200 kg
Load capacity loading table with optional turntable*
30 kg
Drive type
Servo
Servo motor power
400 W
Positioning accuracy
+/-0.03 mm
Max. speed
3000 rpm
Cutting thickness
0.1-400 mm (adjustable)
Max. workpiece size
400 × 400 × 400 mm (L×W×H)
Max. workpiece size with optional turntable*
400 × 400 × 300 mm (L×B×H)
Max. linear speed
32 m/s
Water tank capacity
120 l
*The parameters vary depending on the machine version. Contact us for further information.
